Industrial
Solenoids and
Electromechanical Devices

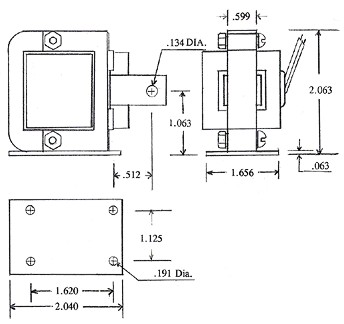

OPEN FRAME,
PULL SOLENOID
Model
6505
|
|
PART
NUMBER |
VOLTAGE
60 HZ |
INITIAL
AMPS |
STEADY
STATE
AMPS |
COIL
RESISTANCE
OHMS ± 10% |
|
6505-01 |
24 |
7.0 |
.28 |
2.9 |
|
6505-02 |
48 |
3.5 |
.2 |
11.6 |
|
6505-03 |
115 |
2.0 |
.2 |
49 |
|
6505-04 |
220 |
1.0 |
.1 |
196 |
|
6505-05 |
440 |
.5 |
.03 |
784 |
|
|
SPECIFICATIONS |
|
STROKE: .5" |
|
FORCE AT .85% of VOLTAGE: 1.7
lbs. |
|
DIELECTRIC STRENGTH: 2000
V |
|
COIL LEADS: #
18 12" long |
|
OPEN FRAME |
|
COIL INSULATION: Nylon |
|
MAX TEMPERATURE: 105°
C |
|
WEIGHT, NOMINAL: .75
lb. |
VARIATIONS
Nearly every
solenoid needs to be customized to fit specific
applications. There are available modifications for
mounting, stroke, coil resistance, lead length, lead
termination, push or pull configurations, spring
returns, etc. Please specify what will make your
application work and we will modify the solenoid to
fit your needs.
|
