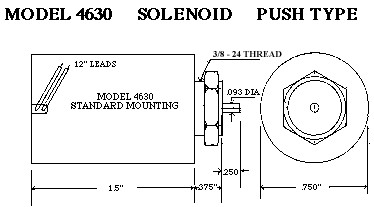

DC Tubular Solenoid .750 in Dia.x1.5 in 15W (Model 4630-Data Sheet 18)

Model 4630



SELECTION

This solenoid is designed for a variety of Automation Control tasks with the use of DC power. The Force Output - Stroke - Watts Used table is designed to assist our customers to select the required solenoid. Then the Coil Selection Table is used to select the necessary coil for the available voltage.

TO ORDER

To order please specify the Model, Stroke and Coil.

MODEL

STROKE

COIL

4630

.125

4661-31=

46300-.125.-4661-31


This is a model 4630 solenoid with the standard mounting shown above, having a stroke of .125" and having a 25 ohm coil which will operate continuously at 24VDC with a 23 watt power consumption or intermittently at 48VDC with a 92 watt power consumption.



LINEAR FORCE IN POUNDS vs STROKE and INPUT POWER

LINEAR FORCE OUTPUT IN POUNDS

STROKE IN INCHES

CONTINUOUS DUTY

INTERMITTENT DUTY

50%

10%

1%

.250

0.3

0.7

1.2

(1.7)

(3.2)

(6.4)

.200

0.5

1.0

1.5

(2.1)

(4.0)

(8.0)

.150

0.7

1.5

2.0

(2.5)

(5.0)

(9.0)

.100

0.9

1.8

2.5

(3.2)

(5.8)

(10.0)

.050

1.6

3.5

4.0

(4.5)

(6.2)

(11.0)

.025

2.2

4.5

5.0

(6.0)

(7.0)

(12.0)

WATTS

10W

20W

30W

(40W)

(80W)

(160W)



COIL SELECTION TABLE FOR RESISTANCE AND POWER COMSUMPTION

COIL PART NO.

RESISTANCE OHMS at 72 F

WATTS AT 72 Deg. F COIL TEMPERATURE

6V

12V

24V

48V

120V

(Red text) inidcates intermittent duty

4661-23

0.6

(60.0)

-

-

-

-

4661-24

1.0

(36.0)

(144.0)

-

-

-

4661-25

1.6

22.5

(90.0)

-

-

-

4661-26

2.5

14.19.2

(57.6)

-

-

-

4661-27

3.9

5.7

(36.9)

(147.7)

-

-

4661-28

6.3

-

22.9

(91.4)

-

-

4661-29

10.0

-

14.4

(57.6)

-

-

4661-30

15.7

-

9.2

(36.7)

(146.8)

-

4661-31

25

-

5.8

23.0

(92.2)

-

4661-32

39

-

-

14.8

(59.1)

-

4661-33

60

-

-

9.6

(38.4)

-

4661-34

96

-

-

6.0

(24.0)

(150.0)

4661-35

153

-

-

-

15.1

(94.1)

4661-36

245

-

-

-

9.4

(58.8)

4661-37

393

-

-

-

5.9

(36.6)

4661-38

630

-

-

-

-

22.6

4661-39

1000

-

-

-

-

14.4

4661-40

1600

-

-

-

-

9.0



VARIATIONS

Nearly every solenoid needs to be customized to fit specific applications. There are available modifications for mounting, stroke, coil resistance, lead length, lead termination, push or pull configurations, spring returns, etc. Please specify what will make your application work and we will modify the solenoid to fit your needs.
