 Your Leader for Actuators, Solenoids, Coils, and Replacement Parts



DC Tubular Solenoid 3.00 in. x 6.00 in. 80W (Model 4530-Data Sheet 19)

Model 4530



SELECTION

This solenoid is designed for a variety of Automation Control tasks with the use of DC power. The Force Output - Stroke - Watts Used table is designed to assist our customers to select the required solenoid. Then the Coil Selection Table is used to select the necessary coil for the available voltage.



TO ORDER

To order please specify the Model, Stroke and Coil.

MODEL

STROKE

COIL

4530

.500"

4534-26

4530-.500-4534-26

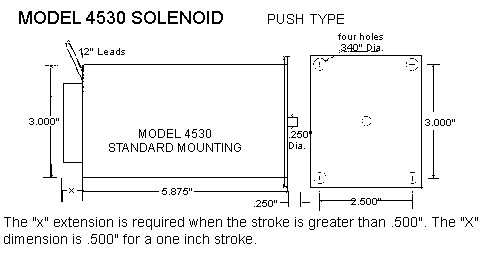

This is a model 4530 solenoid with the standard mounting shown above, having a stroke of .500" and having a 170 ohm coil which will operate continuously at 120VDC with a 85 watt power consumption.




LINEAR FORCE OUTPUT IN POUNDS vs STROKE and INPUT POWER

STROKE IN INCHES

LINEAR FORCE OUTPUT IN POUNDS

CONTINUOUS DUTY

INTERMITTENT DUTY

50%

25%

5%

1.000

8

15

(24)

(41)

(50)

.750

12

23

(28)

(44)

(53)

.500

22

40

(49)

(68)

(78)

.400

26

44

(56)

(70)

(77)

.300

30

48

(63)

(77)

(85)

.250

33

50

(64)

(78)

(86)

.200

35

53

(67)

(80)

(87)

.150

38

58

(72)

(83)

(91)

.100

42

65

(80)

(89)

(94)

.050

44

75

(88)

(95)

(100)

WATTS

50W

80W

(140W)

(230W)

(350W)



COIL SELECTION TABLE FOR RESISTANCE AND POWER CONSUMPTION

COIL PART NO.

RESISTANCE OHMS at 72 deg.

WATTS AT 72 Deg. F COIL TEMPERATURE

12V

24V

48V

120V

(Red text) indicates intermittent duty

4534-16

1.6

90.0

(360.0)

-

-

4534-17

2.5

57.6

(230.4)

-

-

4534-18

4.0

36.0

(144.0)

-

-

4534-19

6.5

-

88.6

(354.5)

-

4534-20

9.8

-

58.8

(235.1)

-

4534-21

16

-

-

(144.0)

-

4534-22

25

-

-

91.4

-

4534-23

41

-

-

56.2

(351.2)

4534-24

66

-

-

34.9

(218.2)

4534-25

106

-

-

21.7

(135.8)

4534-26

170

-

-

13.6

84.7

4534-27

272

-

-

8.5

52.9



VARIATIONS

Nearly every solenoid needs to be customized to fit specific applications. There are available modifications for mounting, stroke, coil resistance, lead length, lead termination, push or pull configurations, spring returns, etc. Please specify what will make your application work and we will modify the solenoid to fit your needs.
