 Your Leader for Actuators, Solenoids, Coils, and Replacement Parts

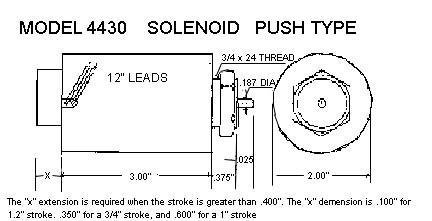

DC Tubular Solenoid 2.00 in. Dia x 3.00 in 40W (Model 4430-Data Sheet 16)



Model 4430







SELECTION

This solenoid is designed for a variety of Automation Control tasks with the use of DC power. The force Output-Stroke- Watts Used table is designed to assist our customers to select the required solenoid. Then the Coil Selection Table is used to select the necessary coil for the available voltage.

TO ORDER

To order please specify the Model, Stroke and Coil.

MODEL

STROKE

COIL

4430

.250

4434-24=

4430-.250-4434-24


This is a model 4430 solenoid with the standard mounting shown above, having a stroke of .250" and having a 13.2 ohm coil which will operate continuously at a 24VDC with a 43.68 watt power consumption or intermittently at 48VDC with a 174 watt power consumption.


LINEAR FORCE OUTPUT IN POUNDS vs. STROKE and INPUT POWER

STROKE IN INCHES CONTINUOUS DUTY INTERMITTENT DUTY
50% 10% 1%
1.00 - - 0.1 (0.6) (1.0) (2.0)
.750 0.2 0.5 0.7 (1.7) (3.0) (5.0)
.500 0.7 1.2 1.7 (4.0) (6.6) (11)
.400 1.2 2.2 3.0 (6.0) (9.5) (14)
.300 2.0 3.2 7.0 (8.5) (15) (22)
.250 3.0 4.2 5.0 (9.5) (17) (25)
.200 3.5 5.0 7.2 (13) (23) (30)
.150 5.5 7.5 10 (18) (31) (40)
.100 7.5 13 16 (29) (45) (50)
.050 23 34 40 (54) (70) (75)
.025 49 57 63 (70) (81) (91)
WATTS 20W 30W 40W 80W 160W 280W

COIL SELECTION TABLE FOR RESISTANCE AND POWER CONSUMPTION

COIL PART NO.

RESISTANCE OHMS AT 72

WATTS AT 72 Deg. F COIL TEMPERATURE

6V

12V

24V

48V

120V

(Red text) indicates intermittent duty

4434-17

0.5

(72.0)

(288.0)

-

-

-

4434-18

0.9

40.0

(160.0)

-

-

-

4434-19

1.2

30.0

(120.0)

(480.0)

-

-

4434-20

2.1

17.1

(68.6)

(274.3)

-

-

4434-21

3.7

-

38.9

(155.7)

-

-

4434-22

5.7

-

25.3

(101.1)

(404.2)

-

4434-23

9.3

-

15.5

(61.9)

(247.7)

-

4434-24

13.2

-

10.9

43.6

(174.5)

-

4434-25

19.7

-

-

29.2

(117.0)

-

4434-26

30

-

-

19.2

(76.08)

(480.0)

4434-27

51

-

-

11.3

45.2

(282.4)

4434-28

90

-

-

-

25.6

(160.0)

4434-29

125

-

-

-

17.1

(106.7)

4434-30

220

-

-

-

10.5

(65.50)

4434-31

367

-

-

-

-

39.2

4434-32

563

-

-

-

-

25.6

4434-33

844

-

-

-

-

17.1



VARIATIONS

Nearly every solenoid needs to be customized to fit specific applications. There are available modifications for mounting, stroke, coil, lead length, lead termination, push or pull configurations, spring returns, etc. Please specify what will make your application work and we will modify the solenoid to fit your needs.
