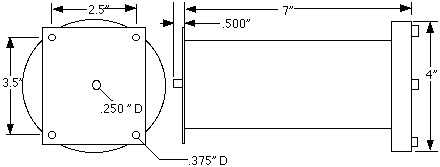

DC Solenoid 3in. Dia. x 7in. 80W 35 lb. force (Model 4062-Data Sheet 9)



Model 4062



Force output: 35 pounds with .50 inch stroke or 50 pounds with .25 inch stroke

Power used: 85 watts

Voltage: Any DC voltage, 120 and 230 VDC standard

Coil resistance: 170 Ohms for 120 VDC

Ambient operating temperature: 140 Deg. F

Totally enclosed

This solenoid generates a 35 pound push over a length of .5 inches with its stainless steel push rod with a power consumption of only 85 watts. The unit is totally enclosed to protect the operating parts from difficult invironments. The device can be ordered for use with any DC voltage and will operate satisfactorily on AC 60 HZ through the use of only a full wave rectifying bridge. The coil is constructed with class H insulation rated for long life at 200 Deg. C.

This type of solenoid is typically used to operate valves, lock or open gates, operate braking mechanisms and similar operations required by industrial machinery. This solenoid is also available in an explosion proof version described on Data Sheet 10.
