 Your Leader for Actuators, Solenoids, Coils, and Replacement Parts



DC Push/Pull Solenoid 4in Dia x 5.25in 95W 60 lb (Model 4019-Data Sheet 11)


Industrial Solenoids and Electromechanical Devices

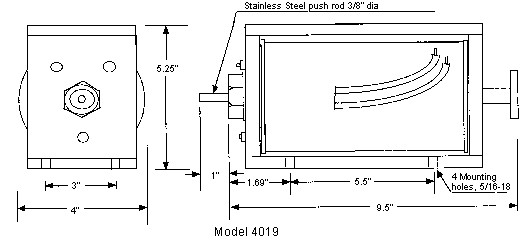

Model 4019

OPEN FRAME PUSH / PULL SOLENOID



Force Output:

40 pounds at 1" stroke
60 pounds at 1/2"' stroke
80 pounds at 1/4" stroke

Power used:

95 Watts

Voltage:

Any DC voltage, 120VDC and 230VDC Standard.

Coil resistance:

140 ohms for 120 VDC
620 ohms for 230 VDC

Weight:

30 pounds

Ambient operating temperature:

140 Degrees F



This solenoid is designed to operate in unprotected industrial environments for long periods of time. The coil is made up of the highest grade of insulation materials available and the solenoid can remain energized without adverse effect. The design is efficient and powerful for its size. The solenoid can push with its 3/8 Dia stainless steel push rod or it can be connected to a pull load by using the 3/8-16 tapped hole at the reverse end of the solenoid.
