AC Solenoid Model 6503 (Data Sheet 24-5)



Industrial Solenoids and

Electromechanical Devices

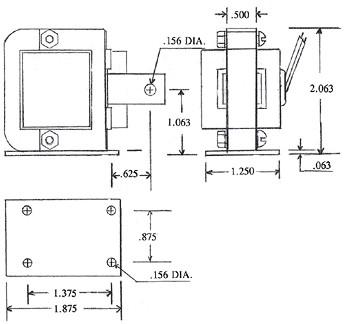

OPEN FRAME, PULL SOLENOID

Model 6503















PART
NUMBER
VOLTAGE
60 HZ
INITIAL
AMPS
STEADY
STATE
AMPS
COIL
RESISTANCE
OHMS ± 10%
6503-01 24 6.0 .6 4.2
6503-02 48 2.8 .4 16.7
6503-03 115 1.6 .2 67
6503-04 220 .8 .1 268
6503-05 440 .4 .05 1072

SPECIFICATIONS
STROKE:     .5"
FORCE AT .85% of VOLTAGE:     1.5 lbs.
DIELECTRIC STRENGTH:     2000 V
COIL LEADS:     # 18  12" long
OPEN FRAME
COIL INSULATION:
Nylon, wrapped
MAX TEMPERATURE:  105° C

WEIGHT, NOMINAL:     10 oz.



VARIATIONS

Nearly every solenoid needs to be customized to fit specific applications. There are available modifications for mounting, stroke, coil resistance, lead length, lead termination, push or pull configurations, spring returns, etc. Please specify what will make your application work and we will modify the solenoid to fit your needs.
