AC Solenoid Model 6502 (Data Sheet 24-4)

Industrial Solenoids and

Electromechanical Devices

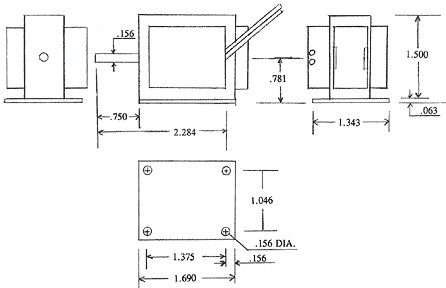

OPEN FRAME, PUSH SOLENOID

Model 6502













PART
NUMBER
VOLTAGE
60 HZ
INITIAL
AMPS
STEADY
STATE
AMPS
COIL
RESISTANCE
OHMS ± 10%
6502-01 24 7.0 .6 3.31
6502-02 48 3.6 .4 13.25
6502-03 115 2.1 .25 53 ohms
6502-04 220 1.0 .12 212
6502-05 440 .5 .06 848

SPECIFICATIONS
STROKE:     .5"
FORCE AT .85% of VOLTAGE:     1.5 lbs.
DIELECTRIC STRENGTH:     2000 V
COIL LEADS:     # 18  12" long
OPEN FRAME
COIL INSULATION:     Nylon
MAX TEMPERATURE:  105° C

WEIGHT, NOMINAL:     8 oz.



VARIATIONS

Nearly every solenoid needs to be customized to fit specific applications. There are available modifications for mounting, stroke, coil resistance, lead length, lead termination, push or pull configurations, spring returns, etc. Please specify what will make your application work and we will modify the solenoid to fit your needs
